DC COMPONENTS
DC ISOLATOR SWITCH IP66 WITH MC4 1000V 32A
FEEO FDIS-32 series of DC ISOLATOR (DISCONNECTOR) with Connector is designed for out door solar system. The protection level is IP66. Rated Current from 16A-32Amp,can be customized to 58Amp. Rated voltage:1000VDC.
Color
Variant
1000V
- Brand FEEO
- Model FDIS-32
- Voltage 1000V
- Current 32A
AC SPD 4P 20-40KA
FEEO AC Surge arrester (SPD) FSP-A 4Poles is designed for protecting triple phase equipment or systems from the lightning. Discharge current range from 5KA to 100KA.
- Good conductivity: This surge protector uses copper fittings for good electrical conductivity.
- Long service life: The product is manufactured with precision electronic components for longer life and more stable performance.
- Simple installation: This household surge protector is installed with 2P rails, mounted on standard 36MM rails, and used in conjunction with circuit breakers in the distribution box. Installation is very simple.
- High safety: The outer casing of the arrester is made of PC flame retardant material and is safer to use.
- Simple and convenient: The product is modular in design and easy to use and maintain.
Color
Variant
UNIT
- Brand FEEO
- Model FSP-A
- Voltage 385V
- Current 20-40KA
DC BREAKER 2P 50A
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 800VDC or 550VDC.
- Brand FEEO
- Model FPV-63
- Voltage 550V or 800V
- Current 50A
DC BREAKER 2P 63A
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 800VDC or 550VDC.
- Brand FEEO
- Model FPV-63
- Voltage 550V or 800V
- Current 63A

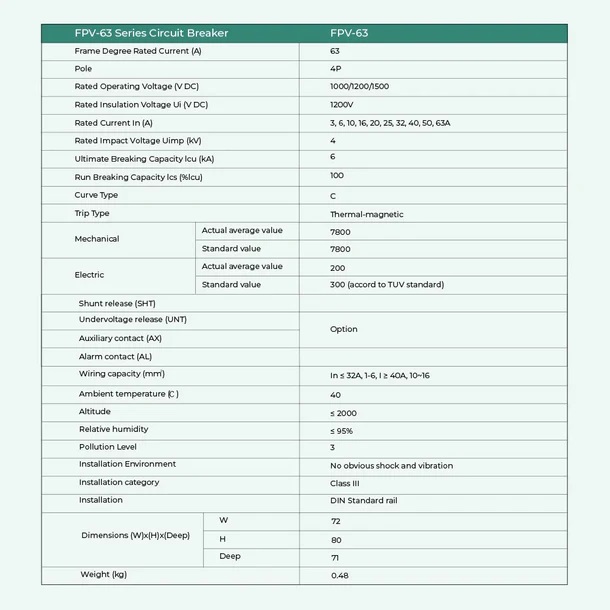

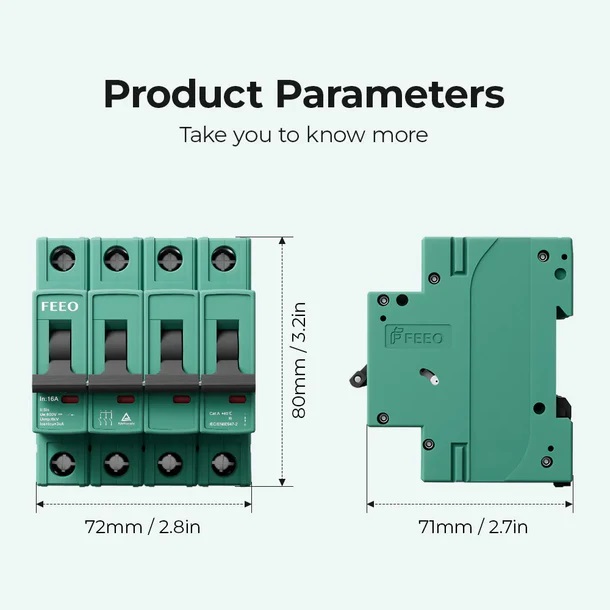

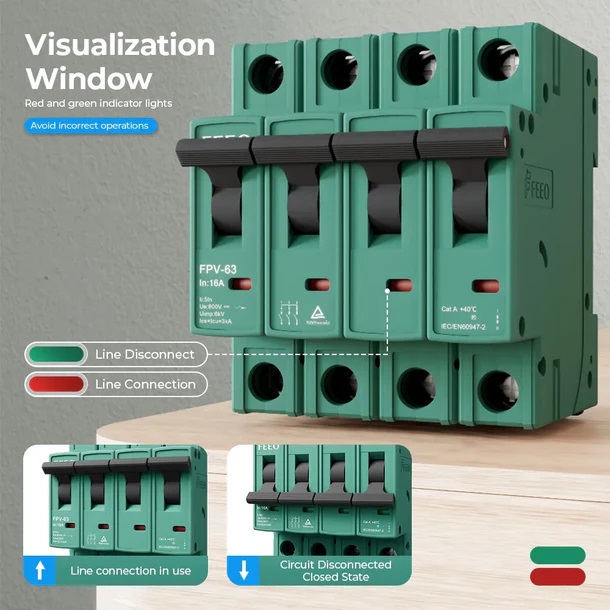

DC BREAKER 4P 25A 1000V
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 4Poles is 1000VDC, even can be customized to 1200VDC.
Color
Variant
1000V
- Brand FEEO
- Model FPV-63
- Voltage 1000V
- Current 25A
DC BREAKER 2P 32A
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 800VDC or 550VDC.
- Brand FEEO
- Model FPV-63
- Voltage 550V or 800V
- Current 32A
DC BREAKER MCCB 250A 550V
FPVM series of DC Moulded Case Circuit Breaker (DC MCCB) is designed for solar system with bigger current and higher breaking capacity. Rated current of 2Poles contains 100A,125A,200A,250A. Rated voltage of 2Poles is 550VDC. Solar 2P DC MCCB is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is applied to rating current 1250A or less,
direct current rating voltage 1500V or less. Products according IEC60947-2, GB14048.2 standard.
Color
Variant
550V
- Brand FEEO
- Model FPVM-250
- Voltage 550V
- Current 250A

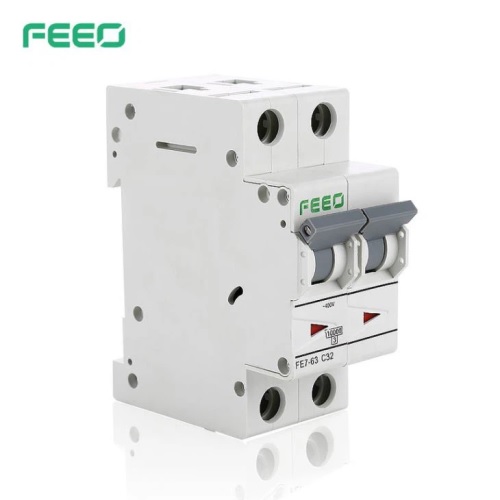

AC BREAKER 2P 20A
FEEO AC MCB (Mini Circuit Breaker), FE7 series 2P 230V/240VAC 16A, 20A, 25A, 32A, 40A, 50A and 63A is design for house using. High Breaking Capacity:10KA with CE certification makes it more safety.
Color
Variant
UNIT
- Brand FEEO
- Model FE7-63
- Voltage 230V
- Current 20A
DC BREAKER 2P 20A
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 800VDC or 550VDC.
- Brand FEEO
- Model FPV-63
- Voltage 550V or 800V
- Current 20A
AC ATS Double Power Source Automatic Switch 4P Red
Hot new solar power grid double power source automatic switch 2 p 3 p AP ATS photovoltaic (pv) power to the city power system
- Complete
Protection Function: This auto transfer switch supports a variety of
protection functions, including short circuit, overload, lack of phase,
under voltage protection.
- EPS
Fire Power Supply: This dual power automatic transfer switch adopted EPS
fire power supply interface, DC12-24v can reliably long-distance double
point.
- Automatic
And Manual: This automatic switch not only supports auto mode, also can be
operated by manual button, simple operation and reliable performance.
- Wide
Applications: This dual power generator changeover switch can be used for
home and public places. Especially suitable for office buildings and
public places which require firefighting.
- Easy
Installation:2P 220V 63A dual power auto circuit breaker can be installed vertically,
or horizontally power supply is easy to install and reliable.z
Color
Variant
UNIT
- Brand FEEO
- Model FNTS-125
- Voltage 400V
- Current 125A
FUSE LINK 20A 1000VDC
FEEO FDS-32 series of DC FUSE is designed for solar system. Fuse holder (fuse base) with indicator light is used for 1A-32Amp,1000VDC.
- MOUNTING:10
x 38 mm Midget Fuse Holder with blown fuse indication, 1 Pole.
- CERTIFICATION:
UL listed, and CSA Certified as Photovoltaic fuse holders.
- FUNCTION:
Rated at 30 Amps at 1000VDC, Interrupting Rating of 30,000 DC Amps.
- INSTALLATION:
Easy fuse access, installation and removal.
- CONVENIENT:
Easy to wire screw clamp connections.
- MOUNTING:10
x 38 mm Midget Fuse Holder with blown fuse indication, 1 Pole.
Color
Variant
1000V
- Brand FEEO
- Model FDS-32
- Voltage 1000V
- Current 20A
AC BREAKER 2P 25A
FEEO AC MCB (Mini Circuit Breaker), FE7 series 2P 230V/240VAC 16A, 20A, 25A, 32A, 40A, 50A and 63A is design for house using. High Breaking Capacity:10KA with CE certification makes it more safety.
Color
Variant
UNIT
- Brand FEEO
- Model FE7-63
- Voltage 230V
- Current 25A
ROTARY DC ISOLATOR SWITCH 2P 1500V 32A
Rotary Isolator Switch, 1500V 2 Pole Rotary Isolator Switch, 32A Isolator Rotary Switch
Color
Variant
1500V
- Brand FEEO
- Model FDIS-NHV
- Voltage 1500V
- Current 32A
DC BREAKER 2P 125A 550V
FPV-125 high breaking capacity circuit breaker is specially for solar PV system. The current is form 63A to 125A and voltage up to 550VDC. Standard according to IEC/EN60947-2.
Color
Variant
550V
- Brand FEEO
- Model FPV-125
- Voltage 550V
- Current 125A
FUSE LINK 15A 1000VDC
FEEO FDS-32 series of DC FUSE is designed for solar system. Fuse holder (fuse base) with indicator light is used for 1A-32Amp,1000VDC.
- MOUNTING:10
x 38 mm Midget Fuse Holder with blown fuse indication, 1 Pole.
- CERTIFICATION:
UL listed, and CSA Certified as Photovoltaic fuse holders.
- FUNCTION:
Rated at 30 Amps at 1000VDC, Interrupting Rating of 30,000 DC Amps.
- INSTALLATION:
Easy fuse access, installation and removal.
- CONVENIENT:
Easy to wire screw clamp connections.
- MOUNTING:10
x 38 mm Midget Fuse Holder with blown fuse indication, 1 Pole.
Color
Variant
1000V
- Brand FEEO
- Model FDS-32
- Voltage 1000V
- Current 15A
