EARTHING SYSTEM
DC SURGE PROTECTOR DEVICE 3P 1500VDC
High quality DC SPD DC surge protector type2 3P 1000VDC device. Surge protective device, protect against lighting surge voltages in solar system (photovoltaic power supply system). These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location is recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long. High energy MOVs equipped with specific thermal disconnectors and related failure indicators.
Indicator window is obvious (green is OK, red indicates failure)
Fully enclosed terminal
The shell is made of PC flame retardant material, fire insulation.
Replaceable module
Color
Variant
1500V
- Brand FEEO
- Model FSP-D40
- Voltage 1500V
- Current 20KA to 40KA
DC BREAKER MCCB 125A 550V
FPVM series of DC Moulded Case Circuit Breaker (DC MCCB) is designed for solar system with bigger current and higher breaking capacity. Rated current of 2Poles contains 100A,125A,200A,250A. Rated voltage of 2Poles is 550VDC. Solar 2P DC MCCB is designed to distribute power and protect the circuit and power equipment against overload in solar system. It is applied to rating current 1250A or less,
direct current rating voltage 1500V or less. Products according IEC60947-2, GB14048.2 standard.
Color
Variant
550V
- Brand FEEO
- Model FPVM-125
- Voltage 550V
- Current 125A
AC ATS Double Power Source Automatic Switch 4P Red
Hot new solar power grid double power source automatic switch 2 p 3 p AP ATS photovoltaic (pv) power to the city power system
Color
Variant
UNIT
- Brand FEEO
- Model FNTS-125
- Voltage 400V
- Current 125A
DC BREAKER 2P 32A 550V
FEEO FPV-63 series of DC Mini Circuit Breaker(DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 550VDC, even can be customized to 800VDC.
Color
Variant
550V
- Brand FEEO
- Model FPV-63
- Voltage 550V
- Current 32A

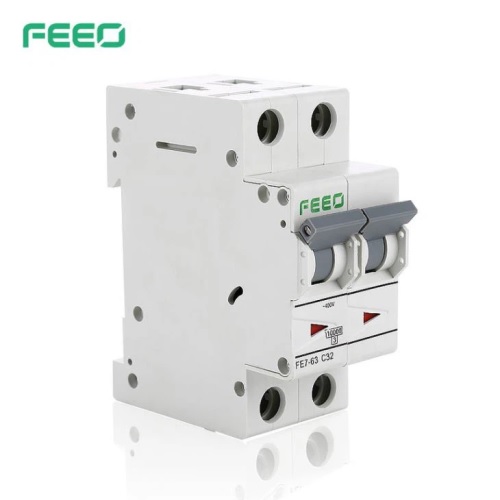

AC BREAKER 2P 16A
FEEO AC MCB (Mini Circuit Breaker), FE7 series 2P 230V/240VAC 16A, 20A, 25A, 32A, 40A, 50A and 63A is design for house using. High Breaking Capacity:10KA with CE certification makes it more safety.
Color
Variant
UNIT
- Brand FEEO
- Model FE7-63
- Voltage 230V
- Current 16A
DC BREAKER 4P 63A 1000V
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 4Poles is 1000VDC, even can be customized to 1200VDC.
Color
Variant
1000V
- Brand FEEO
- Model FPV-63
- Voltage 1000V
- Current 63A
DC BREAKER 4P 16A 1000V
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 4Poles is 1000VDC, even can be customized to 1200VDC.
Color
Variant
1000V
- Brand FEEO
- Model FPV-63
- Voltage 1000V
- Current 16A
DC BREAKER 2P 16A 800V
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 800VDC, even can be customized to 550VDC.
Color
Variant
800V
- Brand FEEO
- Model FPV-63
- Voltage 800V
- Current 16A
DC BREAKER 4P 25A 1000V
FEEO FPV-63 series of DC Mini Circuit Breaker (DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 4Poles is 1000VDC, even can be customized to 1200VDC.
Color
Variant
1000V
- Brand FEEO
- Model FPV-63
- Voltage 1000V
- Current 25A
- Brand FEEO
- Model FTS-63
- Voltage 230V
- Current 63A
AC BREAKER 4P 20A
FEEO AC MCB(Mini Circuit Breaker),FE7 series 4P 400V/415VAC 16A 20A 32A 40A 63A is design for house using. High Breaking Capacity:10KA with CE certification makes it more safety.
Color
Variant
UNIT
- Brand FEEO
- Model FE7-63
- Voltage 400V
- Current 20A
DC SURGE PROTECTOR DEVICE 2P 800VDC
FEEO 2P FSP-D40 series of DC Surge Arrester (DC SPD) is designed for solar system. Discharge current range from 20KA to 40KA. Rated of 2Poles can reach 600VDC, even can be customized to 12VDC,24VDC,48VDC. FEEO 2P FSP-D40 series of DC Surge Arrester (DC SPD) is designed for solar system. Discharge current range from 20KA to 40KA. Rated of 2Poles can reach 600VDC, even can be customized to 12VDC,24VDC,48VDC.
Type 2 surge protective device for Photovoltaic
VG-Technology
Up to 1500 Vdc
No leakage, no operating currents
Impulse currents Iimp/Itotal : 5/10kA @ 10/350 us
Common and Differential Mode protection
Plug-in modules
Remote Signaling (option)
EN 50539-11 compliance
Color
Variant
800V
- Brand FEEO
- Model FSP-D40
- Voltage 800V
- Current 20KA to 40KA
FUSE LINK 63A 1000VDC 14X51mm
FEEO FDS-63 series of DC FUSE is designed for solar system. Rated Current contains:4A,6A,8A,10A,12A,16A,20A,25A,32A,40A,50A,63A Rated voltage is 1000VDC. Breaking Capacity:33KA
Color
Variant
1000V
- Brand FEEO
- Model FDS-63
- Voltage 1000V
- Current 63A
DC BREAKER 2P 40A 550V
FEEO FPV-63 series of DC Mini Circuit Breaker(DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 550VDC, even can be customized to 800VDC.
Color
Variant
550V
- Brand FEEO
- Model FPV-63
- Voltage 550V
- Current 40A
DC BREAKER 2P 50A 550V
FEEO FPV-63 series of DC Mini Circuit Breaker(DC MCB) is designed for solar system. Rated current contains 6A,10A,16A,20A,25A,32A,40A,50A,63A. Rated voltage of 2Poles is 550VDC, even can be customized to 800VDC.
Color
Variant
550V
- Brand FEEO
- Model FPV-63
- Voltage 550V
- Current 50A
